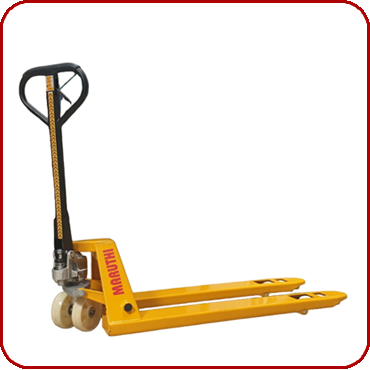

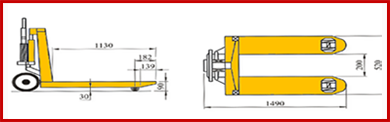

MODEL PT-25, CAPACITY 2500KG |
|
Technical Specification |
|
|
Product Details |
MARUTHI HAND PALLET TRUCK (PT 25) - an indispensable auxiliary for all type of industries.PT-25 (2500Kg Capacity) comes with 4mm Sheet and Length of the Fork is 1150 mm and Width over the fork is 550 mm is extremely versatile manually operated Pallet truck. The handle thickness and angled shape were chosen to provide the most fatigue-free operation. A few strokes of the large steering handle result in 110 mm of lift, while loads can be quickly deposited pulling the convenient three position lever. The neutral position eliminates back pressure from the pump allowing the operator to handle the load, with ease. In addition, the handle is spring-loaded so that it will return to a vertical position when released. |
Specification |
Model |
: PT - 25 |
Capacity |
: 2500 Kgs |
Sheet Thickness |
: 4 mm Sheet |
Colour |
: Yellow |
MAX. Lift Height |
: 200 mm |
Lowered Fork Height |
: 85 mm |
Fork Length |
: 1150 mm |
Fork Width |
: 160 mm |
Width Over The Fork |
: 550 mm |
Push Rod |
: 30 MM Square Tube |
Front Rockeram Axle |
: 25 mm Round Rod |
Front Rockeraram Plate |
: 16 MM THICKNESS ON BOTH (LEFT & RIGHT SIDE) |
Stifner |
: Full Length Stifner On Both Side Of The Fork |
Wheels |
: Nylon / Cast Iron/ Pu |
Steering Wheel |
: 180X50 mm |
Fork Wheel |
: 80X70 mm |
|
|
| |
|

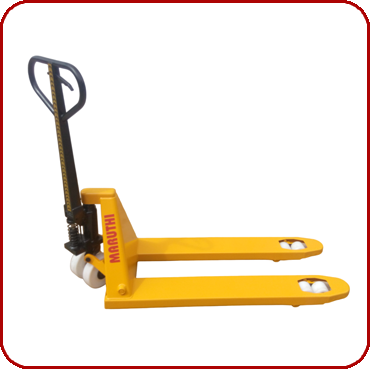

MODEL PT-35, CAPACITY 3500KG |
|
Technical Specification |
|
|
Product Details |
MARUTHI HAND PALLET TRUCK (PT 35) - - an indispensable auxiliary for all type of industries.PT-35 (3500Kg Capacity) comes with 6mm Sheet is extremely versatile manually operated Pallet truck. The handle thickness and angled shape were chosen to provide the most fatigue-free operation. A few strokes of the large steering handle result in 110 mm of lift, while loads can be quickly deposited pulling the convenient lever. The eliminates back pressure from the pump allowing the operator to handle the load, with ease. In addition, the handle is spring-loaded so that it will return to a vertical position when released. |
Specification |
Model |
: PT - 35 |
Capacity |
: 3500 Kgs |
Sheet Thickness |
: 6 mm Sheet |
Colour |
: Yellow |
MAX. Lift Height |
: 200 mm |
Lowered Fork Height |
: 92 mm |
Fork Length |
: 1130 mm |
Single Fork Width |
: 160 mm |
Width Over The Fork |
: 520 mm |
Push Rod |
: 32 MM Square Solid Rod |
Front Rockeram Axle |
: 32 mm Round Rod |
Front Rockeraram Plate |
: 20 MM THICKNESS ON BOTH (LEFT & RIGHT SIDE) |
Stifner |
: 10 mm Flat Full Length On Both Side Of The Fork |
Wheels |
: Nylon / Cast Iron/ Pu |
Steering Wheel |
: 180X50 mm |
Fork Wheel |
: 80X70 mm |
|
|
|
|

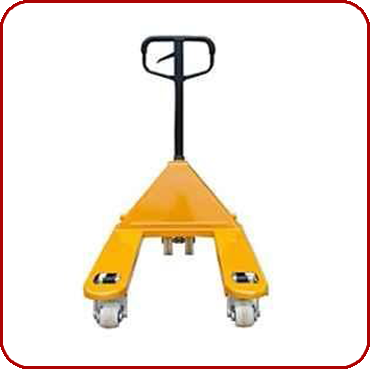

MODEL PT-25 (Special Type), CAPACITY 2500KG |
|
Technical Specification |
|
|
Product Details |
MARUTHI HAND PALLET TRUCK (PT 25 (Special Type)) - an indispensable auxiliary for all type of industries. PT-25 (2500Kg Capacity) comes with 4mm/6mm Sheet and Length of the Fork is 1200/1500 mm and Width over the fork is 685 mm is extremely versatile manually operated Pallet truck. The handle thickness and angled shape were chosen to provide the most fatigue-free operation. A few strokes of the large steering handle result in 110 mm of lift, while loads can be quickly deposited pulling the convenient three position lever. The neutral position eliminates back pressure from the pump allowing the operator to handle the load, with ease. In addition, the handle is spring-loaded so that it will return to a vertical position when released. |
Specification |
Model |
: PT - 25 (Special Type) |
Capacity |
: 2500 Kgs |
Sheet Thickness |
: 4mm /6 mm Sheet |
Colour |
: Yellow |
MAX. Lift Height |
: 200 mm |
Lowered Fork Height |
: 92 mm |
Fork Length |
: 1200 /1500 mm |
Fork Width |
: 160 mm |
Width Over The Fork |
: 685 mm |
Stifner |
: Full Length stifiner On Both Side Of The Fork |
Wheels |
: Nylon / Cast Iron/ Pu |
Steering Wheel |
: 180X50 mm |
Fork Wheel |
: 80X70 mm |
|
|
|
|

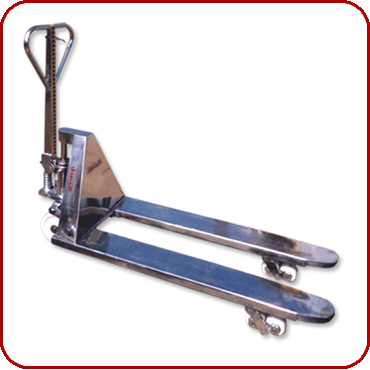

MODEL PT-25 (Stainless Steel), CAPACITY 2500KG |
|
Technical Specification |
|
|
Product Details |
MARUTHI HAND PALLET TRUCK (PT 25 SS) -an indispensable auxiliary for all type of industries.SSPT-25 (2500Kg Capacity) comes with 3.15mm stainless steel is extremely versatile manually operated Pallet truck. The handle thickness and angled shape were chosen to provide the most fatigue-free operation. A few strokes of the large steering handle result in 110 mm of lift, while loads can be quickly deposited pulling the convenient three position lever. The neutral position eliminates back pressure from the pump allowing the operator to handle the load, with ease. In addition, the handle is spring-loaded so that it will return to a vertical position when released. |
Specification |
Model |
: PT - 25 (SS Type) |
Capacity |
: 2500 Kgs |
Sheet Thickness |
: 3.15 mm Sheet |
Colour |
: Silver |
MAX. Lift Height |
: 200 mm |
Lowered Fork Height |
: 85 mm |
Fork Length |
: 1130 mm |
Fork Width |
: 160 mm |
Width Over The Fork |
: 520 mm |
Stifner |
: Full Length stifiner On Both Side Of The Fork |
Wheels |
: Nylon / Cast Iron/ Pu |
Steering Wheel |
: 180X50 mm |
Fork Wheel |
: 80X70 mm |
|
|
|
|

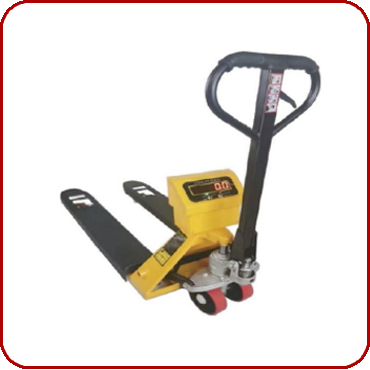

Pallet Truck With Weighing Scale |
|
Technical Specification |
|
|
Product Details |
MARUTHI HAND PALLET WITH WEIGHING SCALE- an indispensable auxiliary for all type of industries.PT-20/25 (2000/2500Kg Capacity) comes with 4mm Sheet is extremely versatile manually operated Pallet truck used for measuring the load capacity. The handle thickness and angled shape were chosen to provide the most fatigue-free operation. A few strokes of the large steering handle result in 110 mm of lift, while loads can be quickly deposited pulling the convenient three position lever. The neutral position eliminates back pressure from the pump allowing the operator to handle the load, with ease. In addition, the handle is spring-loaded so that it will return to a vertical position when released. |
Specification |
Model |
: PT – 20/25 ( Weighting Scale) |
Capacity |
: 2000 / 2500 Kgs |
Sheet Thickness |
: 4 mm Sheet |
Colour |
: Yellow |
MAX. Lift Height |
: 200 mm |
Lowered Fork Height |
: 85 mm |
Fork Length |
: 1150 mm |
Fork Width |
: 160 mm |
Width Over The Fork |
: 550 mm |
Stifner |
: Full Length Stiffener On Both Side Of The Fork |
Measure Weight In |
: Pounds / Kilograms |
Weight Accuracy |
: High Accuracy Maximum Error 0.1% Of Scale Capacity |
Powered By |
: 4X 1.5VAA Battery For Print & For LCD Display |
Wheels |
: Nylon / Cast Iron/ Pu |
Steering Wheel |
: 180X50 mm |
Fork Wheel |
: 80X70 mm |
|
|
|
|

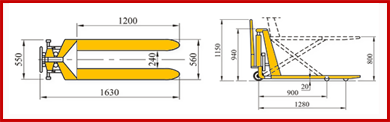

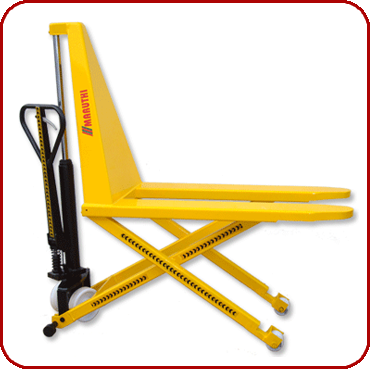

MODEL HLPT-10 High Lift Pallet Truck |
|
Technical Specification |
|
|
Product Details |
MARUTHI HIGH LIFT HAND PALLET (HLPT) - Series is a special pallet truck which combines the advantages of hand pallet truck and they are adjustable work table the forks of the pallet truck can be rapidly and easily lifted by means of the hydraulic pump which is operated with the drawbar the quality and reliability of the HLPT is very high because it is equipped with the adjustable stabilizer at 350 mm the lift the steering wheels lifts above the floor. This ensures that the equipment’s remains the stationary when being used as a work table. |
Specification |
Model |
: HLPT –10 |
Capacity |
: 1000 Kgs |
Sheet Thickness |
: 4 mm Sheet |
Colour |
: Yellow |
MAX. Lift Height |
: 800 mm |
Lowered Fork Height |
: 90 mm |
Fork Length |
: 1150 mm |
Fork Width |
: 160 mm |
Width Over The Fork |
: 520 mm |
Wheels |
: Nylon / Cast Iron/ Pu |
Steering Wheel |
: 180X50 mm |
Fork Wheel |
: 80X70 mm |
|
|
