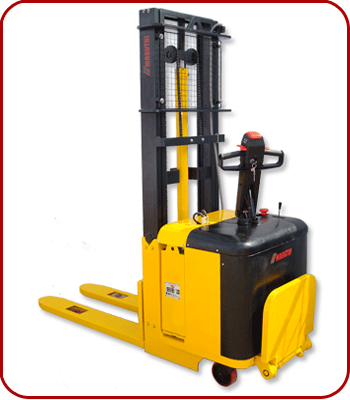

MARUTHI FULLY ELECTRICAL STACKER ( MES Series ) is used for horizontal transport of goods. It is ideal for high intensity movement over long distances. With its compact design and small turning radius it is used for stacking and destocking.
Fully Electrical Stackers
Specification
Model
MES – 10
MES – 15
Capacity
1000 Kgs
1500 Kgs
Load Center
600 Kgs
600 Kgs
Colour
Yellow
Yellow
MAX. Lift Height
1600 MM / 2000 MM /3000 MM
1600 MM / 2000 MM /3000 MM
Lowered Fork Height
92 mm
92 mm
Fork Length
1150 mm
1150 mm
Fork Width
180 mm
180 mm
Width Over The Fork
: 560 mm
: 560 mm
Working Asils and Width, with 800x1200 Lenthwise
2300 mm
2300 mm
Outer Turning Radius
1600 mm
1600 mm
Speed
6 Km/h
6 Km/h
Lifting Speed (Main Lift) Laden/Unladen
0.12/0.23 m/s
0.12/0.23 m/s
Brake
Electro Magnetic
Electro Magnetic
Drive Motor Rating
1.6 k/w
1.6 k/w
Hydraulic Motor Rating
1.5 k/w
2.2 k/w
Battery Voltage, Capacity
24 / 196 v/ah
24/206 v/ah
Drive Control
Electronic
Electronic
Type of Controller
Mosfet
Mosfet
Wheels
Nylon / Cast Iron/ Pu
Nylon / Cast Iron/ Pu
Support Wheel
150X50 mm
150X50 mm
Drive Wheel
230X70 mm
230X70 mm
Load Wheel
70x80 mm
70x80 mm
Overall Length
2100 mm
2100 mm

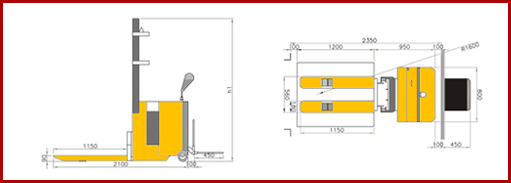

Technical Specification
Drive Unit
The fully closed oil lubricated gearbox is intergraded with drive motor. The drive wheel mounting offer as an extremely easy wheel shift..
Speed Control
The MOSFET controller enables fine-tuning of all drive performance parameters and precise and steeples throttle control.
Break
An electro-magnetic wheel brake is activated when the tiller arm is in top and bottom position. When the tiller arm is released it goes automatically to top position and wheel break acts as a parking brake.
Hydraulic System
The lift pump is mounted on noise surprising rubber blocks. The lifting and lowering functions are controlled by a sliding valve. The forks are lifted and lowered by means of a valve lever placed conveniently in front of the driver.
