Maruthi Handling Equipment, Manual Stackers

Manual Stackers

Maruthi Manual Stacker(MS)is the key to productivity. The loads are conveniently deposited by two position (Lift and Lower) control handle. The ergonomically designed handle makes lifting loads and steering easier. The down position eliminates back pressure from the pump thus allowing the operator to handle the load with ease. The spring-loaded handle returns to vertical position when released. A few strokes of the handle provide a full lift of 1600 mm/2000 mm.

MARUTHI MANUAL STACKER

Specification

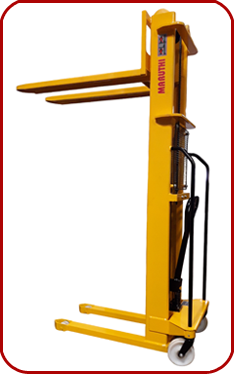

Model	: MS - 5
Capacity	: 500 Kgs
Sheet Thickness	: 6 mm Channel
Colour	: Yellow
MAX. Lift Height	: 1600 mm / 2000 mm
Lowered Fork Height	: 92 mm
Fork Length	: 1150 mm
Fork Width	: 160 mm
Width Over The Fork	: 560 mm
Chain Type	: Single Chain
Wheels	: Nylon / Cast Iron/ Pu
Steering Wheel	: 180X50 mm
Fork Wheel	: 80X70 mm

Specification

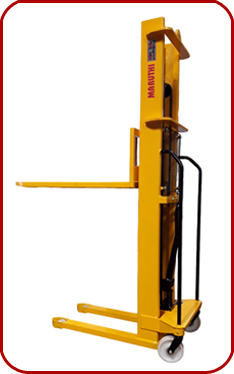

Model	: MS - 10
Capacity	: 1000 Kgs
Sheet Thickness	: 8 mm Channel
Colour	: Yellow
MAX. Lift Height	: 1600 mm / 2000 mm
Lowered Fork Height	: 92 mm
Fork Length	: 1150 mm
Fork Width	: 160 mm
Width Over The Fork	: 560 mm
Chain Type	: Double Chain
Wheels	: Nylon / Cast Iron/ Pu
Steering Wheel	: 180X50 mm
Fork Wheel	: 80X70 mm

Specification

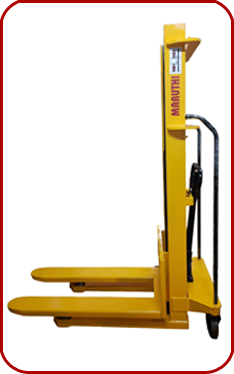

Model	: MS - 15
Capacity	: 1500 Kgs
Sheet Thickness	: 10 mm moduled Fork Lift Channel
Colour	: Yellow
MAX. Lift Height	: 1600 mm
Lowered Fork Height	: 92 mm
Fork Length	: 1150 mm
Fork Width	: 160 mm
Width Over The Fork	: 560 mm
Chain Type	: Double Chain
Wheels	: Nylon / Cast Iron/ Pu
Steering Wheel	: 180X50 mm
Fork Wheel	: 80X70 mm

Technical Specification

Product Details

Maruthi Manual Stackers - an indispensable auxiliary for all type of industries. MS-5/10/15 is extremely versatile manually operated stackers. They are very useful for Loading, Unloading and Stacking operations.

Optional

With a detachable platform on the fork they can be also used as an adjustable work table.
