Maruthi Handling, Semi Electical Stacker
semi Electrical Stackers

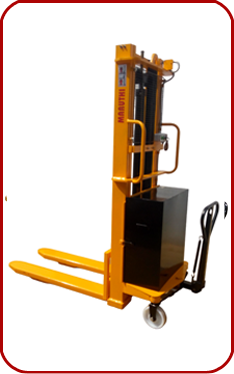

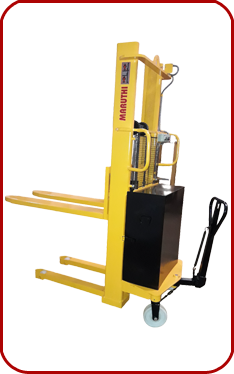

MARUTHI SEMI-ELECTRIC STACKER ( EMS Series ) as a trouble free AC / DC power pack. The compact design with strong steel construction is for greater strength and longer life. The stacker comes with a robust fork lift with strong support arms and mast for minimal bending, safe lifting and long life. The semi-electric stacker AC / DC is designed for simple and convenient lifting operation system.

Semi Electrical Stackers


Semi Electical Stacker
Semi Electical Stacker
Semi Electical Stacker
 Specification

Model

:  EMS 5 AC/DC

Capacity

: 500 Kgs

Sheet Thickness

: 6 mm Channel

Colour

: Yellow

MAX. Lift Height

: 1600 mm / 2000 mm/3000 mm, 4000mm

Lowered Fork Height

: 92 mm

Fork Length

: 1150 mm

Fork Width

: 160 mm

Width Over The Fork

: 560 mm

Chain Type

: Single, Double Chain

Wheels

: Nylon / Cast Iron/ Pu

Steering Wheel

: 180X50 mm

Fork Wheel

: 80X70 mm
 Specification

Model

:  EMS 10 AC/DC

Capacity

: 1000 Kgs

Sheet Thickness

: 8 mm Channel

Colour

: Yellow

MAX. Lift Height

: 1600 mm / 2000 mm / 3000 mm

Lowered Fork Height

: 92 mm

Fork Length

: 1150 mm

Fork Width

: 160 mm

Width Over The Fork

: 560 mm

Chain Type

: Double Chain

Wheels

: Nylon / Cast Iron/ Pu

Steering Wheel

: 180X50 mm

Fork Wheel

: 80X70 mm
 Specification

Model

:  EMS – 15 AC/DC

Capacity

: 1500 Kgs

Sheet Thickness

: 10 mm moduled Fork Lift Channel

Colour

: Yellow

MAX. Lift Height

: 1600 mm / 2000 mm

Lowered Fork Height

: 92 mm

Fork Length

: 1150 mm

Fork Width

: 160 mm

Width Over The Fork

: 560 mm

Chain Type

: Double Chain

Wheels

: Nylon / Cast Iron/ Pu

Steering Wheel

: 180X50 mm

Fork Wheel

: 80X70 mm

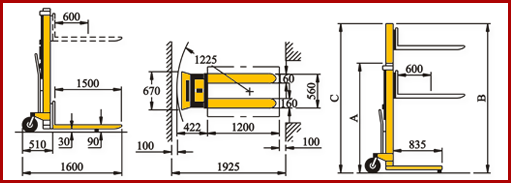

Technical Specification

Product Details

Maruthi Semi Electric Stackers - an indispensable auxiliary for all type of industries. EMS-5/10/15 is extremely versatile AC / DC operated stackers. They are very useful for Loading, Unloading and Stacking operations..

FEATURES:

  • Light and easy manual steering systems, fitted with a parking brake.
  • Smooth control of lifting and lowering for high precision.
  • Energy saving and regenerative, safe and efficient.
  • Special designs customized to client requirements
